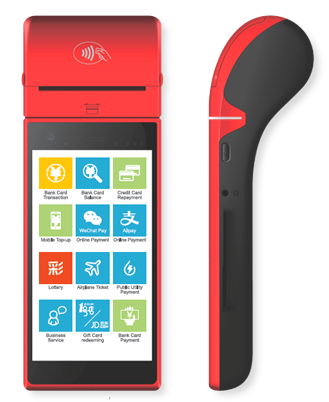

Watchdata Smart POS

Physical Specification

Size L*W*H 200mm*80mm*56mm(25mm)
Weight 450g( with battery)
Working & Storage Temperature Working : 20°C~+60°C & Storage : -40°C~+80°C
Moisture 10%~90(RH Non-congealing)
Drop Test 0.8 meter
Rollover Resistance Rating 500 times
Electrostatic Test 8KV(contact), 15KV(contactless)
Watchdata Smart POS

System Configuration

Printer Built-in 2 inch high speed Thermal Printer
Camera Back Camera 5M AF(Front Camera is optional)
Location Built-in GPS, AGPS
Memory 1GB DDR2 (RAM) + 8GB EMMC (ROM) Expandable to 32GB
CPU 4 core, 1.2GHz (Qualcomm Snapdragon 410 - MSM8916)
Screen 5.5 inch, 5 point touch capacitive Touch
Light Indicator Light
Audio System Built-in speaker, buzzer, microphone
Magnetic Stripe Card Reader Support track 1&2&3, both sides swiped, Standard: ISO/IEC 7811, ISO/IEC 7812
IC Card Reader Standard: EMV, PBOC, ISO7816; Support 1.8V/3V/5V
Contactless Card Reader 13.56MHz, ISO/IEC14443 Type A/B, QPBOC, EMV
Battery 2000 mAH 7.4V (Equivalent output 4000mAH 3.7V)
Power Adaptor Pogo PIN, 9.5A-1A
SAM Card Reader 2 PSAM, ISO/IEC 7816
Keypad Android Keypad
Connectivity

Connectivity Options

Network type 2G: GSM/GPRS/EDGE/CDMA 1X | 3G: TD-SCDMA/TD-HSPA WCDMA/HSPA CDMA EVDO | 4G: TDD LTE FDD LTE
WLAN 802.11b/g/n Internal antenna; Encryption Algorithm
WIFI Supported
Bluetooth Bluetooth v4.0+EDR, dual-mode
External Ports

External Ports

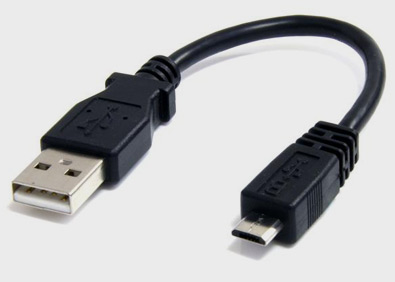

USB Port Micro USB 2.0, supports USB OTG
Charging Port DC JACK
Power Port Pogo Pin, 9.5A-1A
Communicating Port USB, RJ45
Operating System

Operating System

System Environment Android 5.1/SP-UI
Developing Environment SP-SDK
Managing Software SP-PC Managing Suite/MDM Managing System
